Car

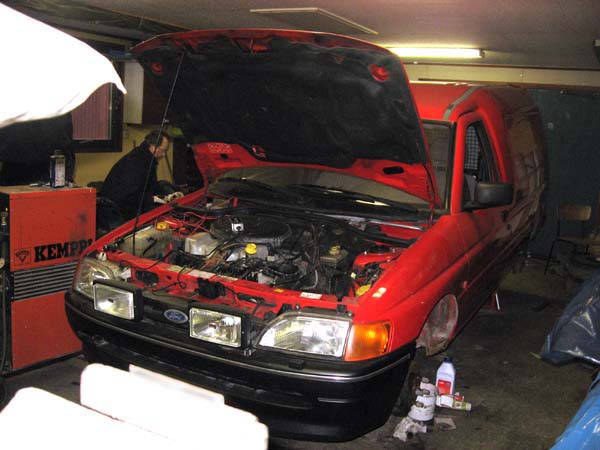

Ford Escort Express -91
The speed is 80km/h and 1.8kW per Swedish mile. The cost to drive the car is about 2 Swedish kronor per mile.
Weight: 1320 kg (incl.battery 620 kg in fornt and 700 kg in the back). The basic weight was 1130 kg and payload 670 Kg.

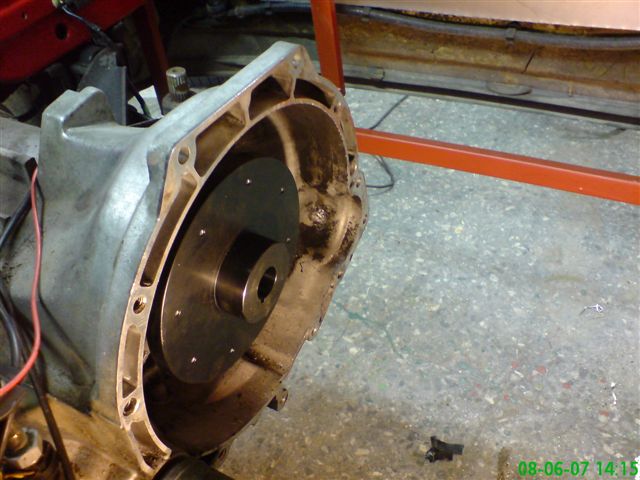

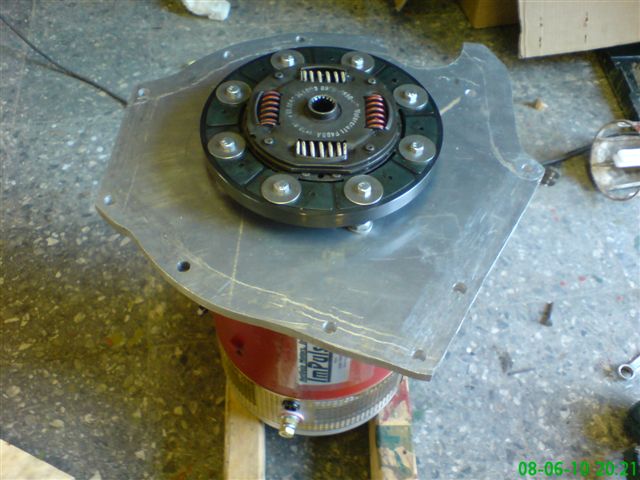

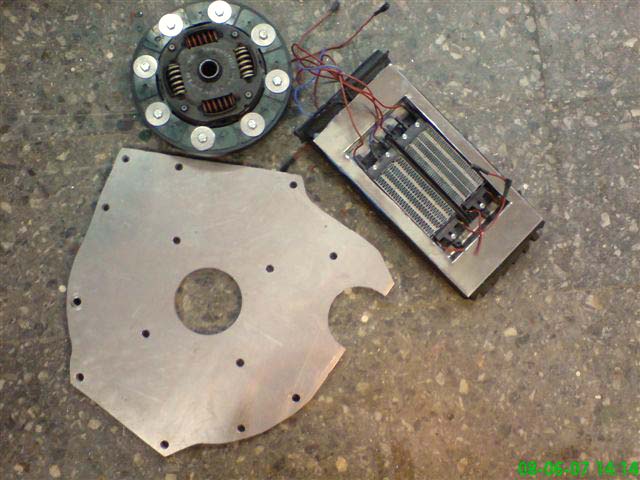

Gearbox: standard but without the clutch. I use the 3rd gear for the most.

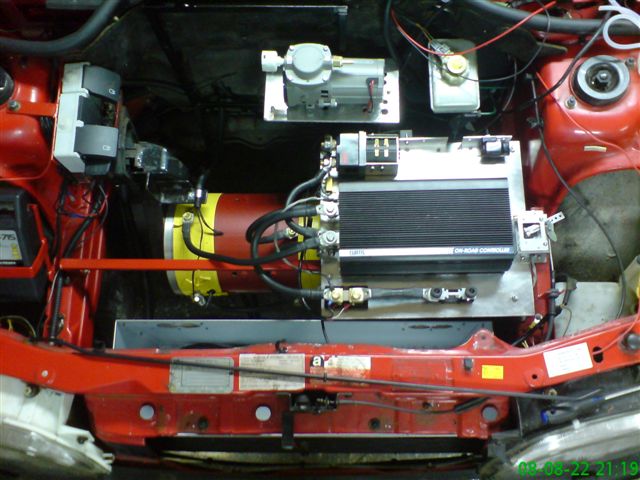

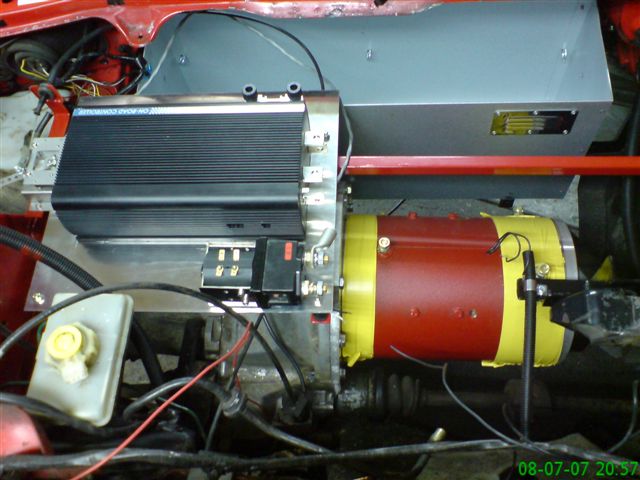

Engie

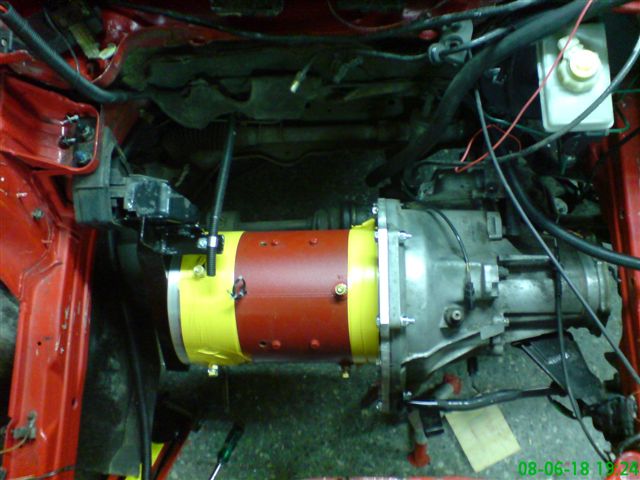

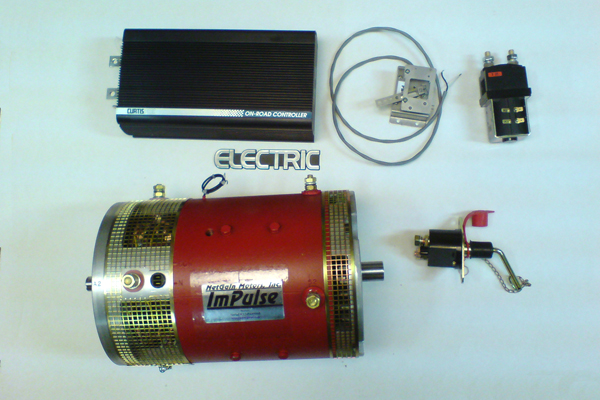

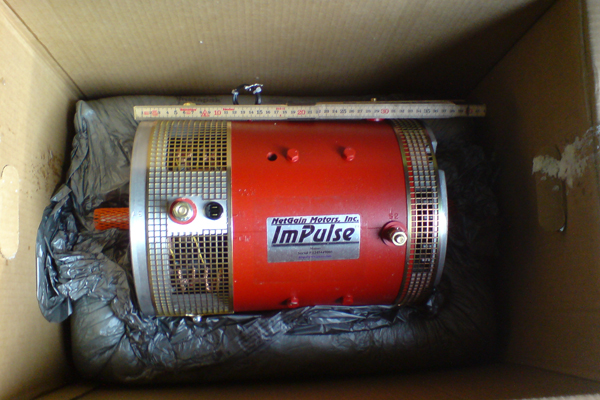

Netgain Impulse 9" Serius Wound DC "WarP" 22 hpcont, 96 hp, peak 144 volt, 5500 rpm max 8000 rpm. Would think that I have 65 hp, about the same as the gasoline engine. It requires no maintenance. May perhaps replace the carbon after about 10,000 Swedish miles. Thermal protection at 180 degrees.

Controller

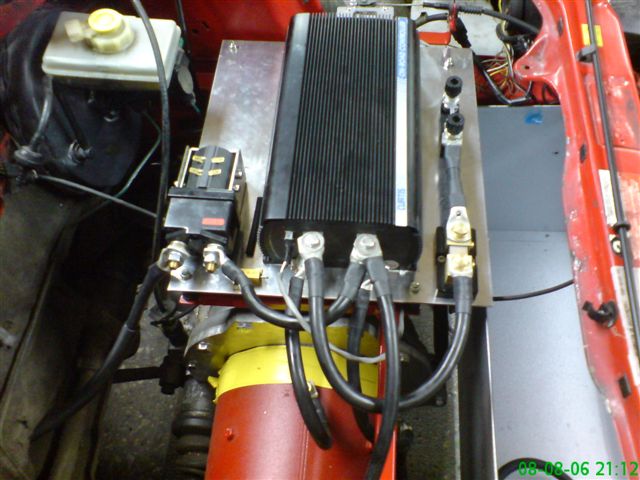

Curtis 1231C-8601 96- 144 volt, 500 Amp.

Batteries

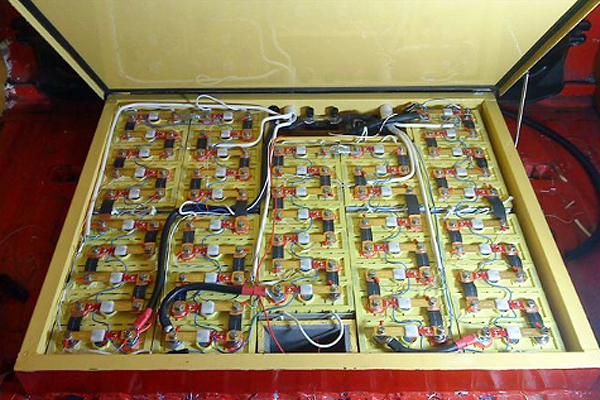

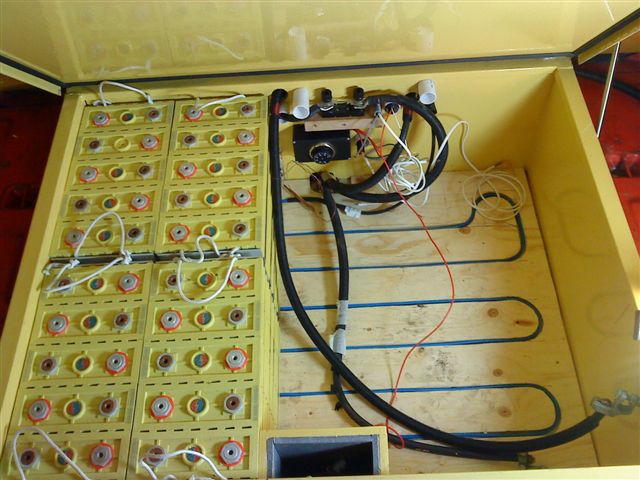

Has replaced my Dyno Europe who broke down and they refused to reimburse me because I had beaten the batteries they said. In contrast, the Swedish supplier Etpab given me a credit note to shop for. Now I have 45 pcs Chinese Thundersky 160Ah purchased from American Evcomponents. The monitoring system of the batteries come from Australia, Evworks. It takes care of so that the batteries will never be over-charged 4.25 volts or get below 2.5 volts and there is a drive on any battery that sends information to the base. All links are further down the page.

Wire and speed

Kumho 13 "165 3Kg pressure.
Top speed: Top speed run 120 without problems but it takes many ampere hours then.
Acceleration: About as before if you want.
Distance: Has run 120 km 136Ah, and there was more to give.

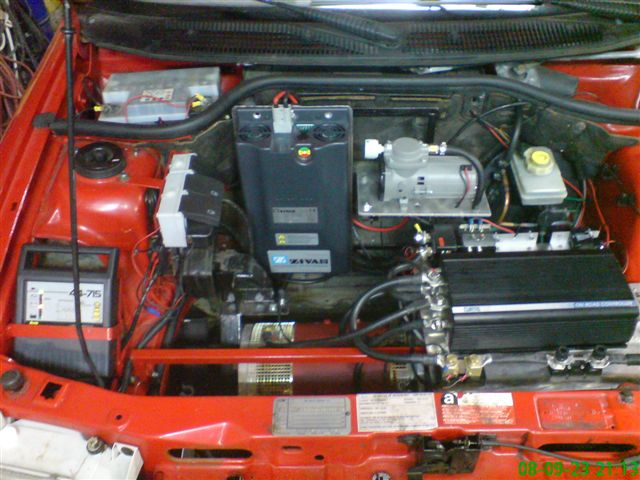

Charger

Zivan NG3 230 volt, 2800 W. Reduced charge for a 2300watt and can run on 10 ampfuse.

System Voltage: 144 volts.

12 volts: Separate charger for 72 Ah battery. ATX: one from a computer takes over if the voltage drops below 11.8 volts. It can run everything without using 12-volt battery.

Dashboard

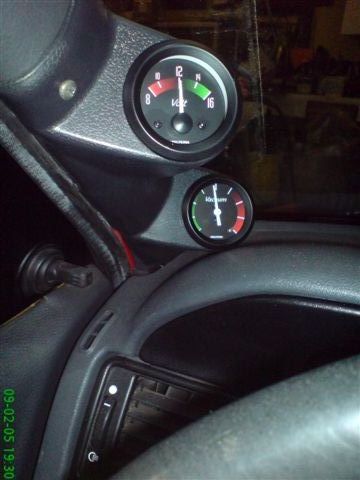

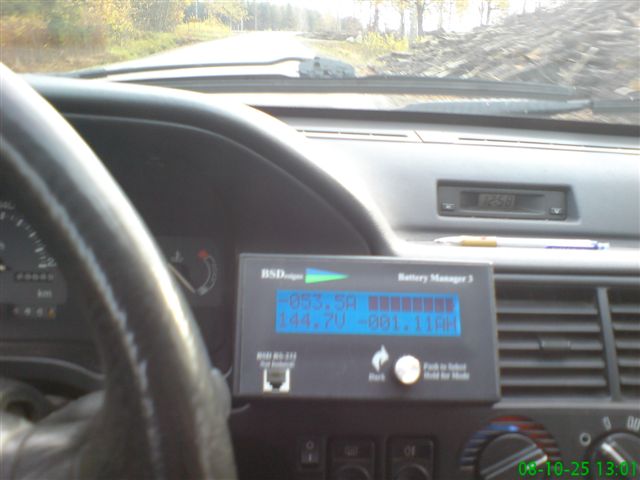

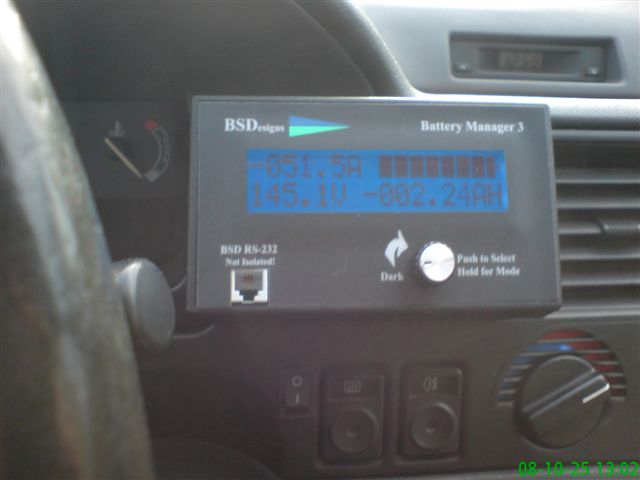

Meter Batman EV 24-200 volts (volts, amps, spent Ah). Vacuum gauge for brakes. Volt meter for 12 volt system.

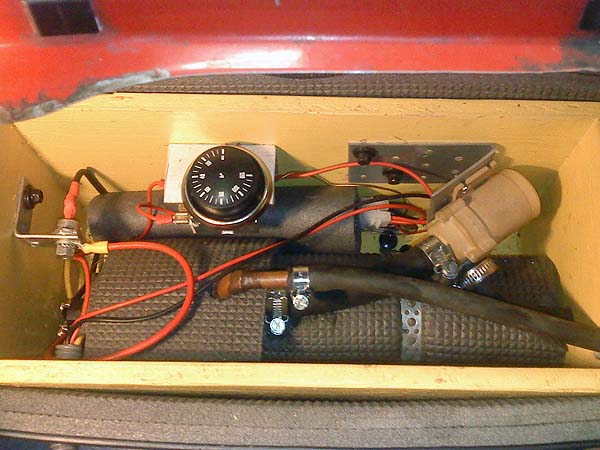

Heating system

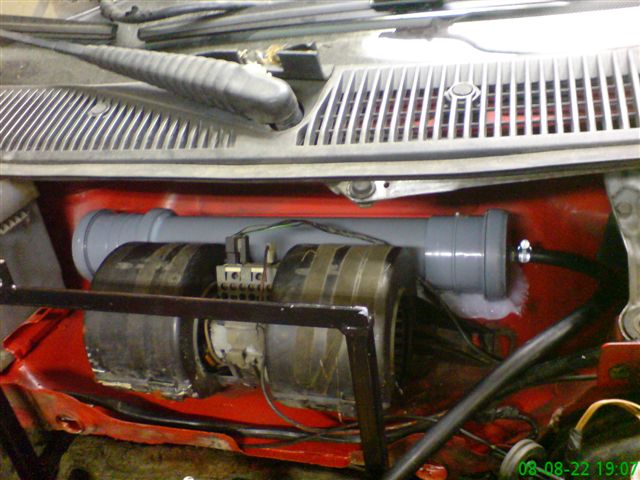

DC-DC converter 400watt 13.5 volts heating system I have built myself of an immersion heater from the U.S. 3500 watts 220 volts. It is driven by pump + thermostat + relay It provides 1500 watts and take 10 amps from the batteries and it reduces the mileage by 3 Swedish miles.
